Probe Card - Market Share Analysis, Industry Trends & Statistics, Growth Forecasts (2026 - 2031)

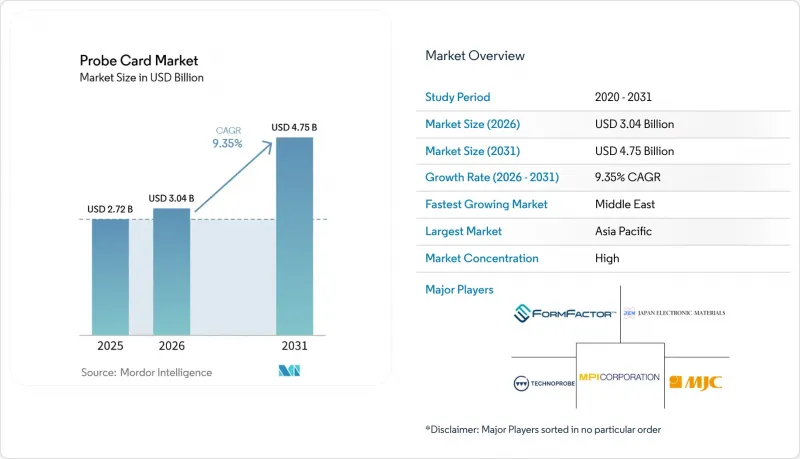

According to Mordor Intelligence, the probe card market size is expected to increase from USD 2.72 billion in 2025 to USD 3.04 billion in 2026 and reach USD 4.75 billion by 2031, growing at a CAGR of 9.35% over 2026-2031.

This report is Segmented by Technology (MEMS, Vertical, Cantilever, and Specialty), Application (DRAM, Flash, Foundry and Logic, Parametric, and More), Type (Standard Probe Card, and Advanced Probe Card), End User (Foundries, Integrated Device Manufacturers, Osats, and Research Institutes), Wafer Size (Up To 150mm, 200mm, 300mm, and 450mm), and Geography. The Market Forecasts are Provided in Terms of Value (USD).

Global Probe Card Market Trends and Insights

Rising Demand for Consumer Electronics and IoT Devices

Smartphone shipments stabilized at 1.2 billion units in 2025, but semiconductor content per handset climbed 18%, led by dedicated AI engines and advanced power-management ICs. Automotive electronics spending reached USD 82 billion in 2025, as electric vehicles now integrate up to 3,000 chips per unit. The installed IoT base surpassed 16 billion devices, with industrial and healthcare endpoints demanding mixed-signal validation across temperature extremes. These shifts decouple probe card demand from mere unit counts, keeping wafer-level test floors busy even when consumer volume plateaus. Apple's custom M4 processors, introduced in 2025, further spotlight vertical integration strategies that require bespoke probe solutions for unified memory architectures.

Miniaturization of Semiconductor Devices

TSMC moved to volume production of its 2 nm gate-all-around process in late 2025, necessitating probe tips that position within 10 micrometers while avoiding pad damage. Intel's forthcoming 18A node introduces backside power delivery, compelling dual-sided probing that traditional cantilever cards cannot address. Samsung's roadmap toward 1.4 nm has doubled probe replacement frequency versus 5 nm processes, lifting per-wafer test costs and tightening supplier qualification windows. Extreme ultraviolet exposure has also introduced localized yield detractors detectable only through wafer-level parametric testing, intensifying the reliance on high-precision probe cards.

High Cost of Advanced Probe Card Development

A leading-edge probe card can cost more than USD 2.5 million, covering iterative prototyping, material science, and multi-temperature validation, costs that only the largest fabs can amortize. Fragmentation in chiplet architectures further erodes volumes per design, blunting scale economies. Smaller fabs face prohibitive switching expenses, locking them into incumbent suppliers and stretching qualification cycles to a year. Suppliers absorb heavy capex for cleanrooms and sub-micron machining, constraining new entrants despite rising end-market volumes.

Other drivers and restraints analyzed in the detailed report include:

1. Growth in Advanced Packaging and 3D IC Technologies
2. Complexity of Testing at Sub-5 nm Nodes

For complete list of drivers and restraints, kindly check the Table Of Contents.

Segment Analysis

MEMS designs captured 44.76% of 2025 revenue, owing to contact densities above 10,000 pads and positional accuracy better than 5 micrometers, metrics critical for gate-all-around processes. Vertical MEMS is the fastest mover, clocking a 10.63% CAGR as foundries migrate below 3 nm and adopt backside power rails. FormFactor's sub-60 micrometer pitch platform, launched in 2025, lets fabs probe chiplet interconnects exceeding 100 pads per mm2. Cantilever cards linger in mature nodes due to lower cost, yet their share continues to slip as test teams consolidate tooling portfolios.

First-pass yield hinges on spring-constant uniformity: vertical MEMS maintains +-5% variation versus +-20% for cantilevers, elevating contact reliability in wafer-level burn-in. Japanese suppliers expanded capacity by 40% in 2025 to serve local fabs demanding ultra-fine-pitch solutions. AI-assisted alignment shortens setup cycles by 30%, enabling MEMS cards to achieve 99.5% contact on first touchdown, a throughput imperative for today's high-volume lines. Specialty formats such as membrane cards retain relevance in RF validation and power-device probing tied to automotive electrification.

Foundry and logic dominated with 47.59% share in 2025, but flash memory is expanding at 11.02% CAGR as 3D NAND layers breach the 200-stack threshold, inflating test vectors per wafer. Samsung's 286-layer V-NAND required cards able to probe 16 dies simultaneously to hit throughput targets. DRAM unit volumes plateau around DDR5, yet high-bandwidth variants in AI servers sustain incremental demand through stacked dies.

Parametric monitoring now covers 15 points per wafer on Intel's 18A flow, lifting card consumption per lot by 25% over 7 nm baselines. Analog, mixed-signal, and power devices gain tailwinds from automotive safety norms mandating 100% wafer screening. Chiplet convergence is blurring application lines, spurring hybrid cards that combine logic speed tests with high-speed memory eye scans in one touchdown.

Complete Report Scope:

• By Technology
  • MEMS
  • Vertical
  • Cantilever
  • Specialty
• By Application
  • DRAM
  • Flash
  • Foundry and Logic
  • Parametric
  • Other Applications
• By Type
  • Standard Probe Card
  • Advanced Probe Card
• By End User
  • Foundries
  • Integrated Device Manufacturers
  • Outsourced Semiconductor Assembly and Test
  • Research Institutes
• By Wafer Size
  • 150 mm and Below
  • 200 mm
  • 300 mm
  • 450 mm
• By Geography
  • North America
    • United States
    • Canada
    • Mexico
  • South America
    • Brazil
    • Argentina
    • Rest of South America
  • Europe
    • Germany
    • France
    • United Kingdom
    • Italy
    • Spain
    • Russia
    • Rest of Europe
  • Asia-Pacific
    • China
    • Japan
    • South Korea
    • Taiwan
    • India
    • ASEAN
    • Rest of Asia-Pacific
  • Middle East
    • Saudi Arabia
    • United Arab Emirates
    • Turkey
    • Israel
    • Rest of Middle East
  • Africa
    • South Africa
    • Nigeria
    • Kenya
    • Egypt
    • Rest of Africa

Geography Analysis

Asia Pacific retained 84.12% of 2025 revenue, anchored by Taiwan's 45% share of global demand, South Korea's memory leadership, and Japan's domestic content policies. Taiwan's probe card ecosystem benefits from TSMC's 2 nm ramp and the company's USD 40 billion U.S. build, which still sources cards from home suppliers for process continuity. South Korea's Samsung and SK Hynix shipped more than 250 million high-bandwidth stacks in 2025, needing specialty cards for through-silicon via tests. Japan's cluster gained momentum as local content rules at the Kumamoto fab steered purchases to Micronics Japan and Japan Electronic Materials. China's demand grows around mature nodes, but export controls limit access to cutting-edge card designs, prompting domestic innovation.

North America is rising at 8.2% CAGR as CHIPS Act fabs from Intel, TSMC, and Samsung require USD 300 million of incremental test hardware by 2027. Europe follows at 7.9% CAGR via Intel's Magdeburg site, STMicroelectronics' Grenoble expansion, and Infineon's Dresden upgrades, each bound by local resiliency mandates. The Middle East shows the fastest trajectory at 10.06% CAGR as Saudi Arabia and the United Arab Emirates fund 28 nm-plus capacity with joint-venture models. South America and Africa remain small, though Brazil's 2025 tax incentives for assembly could seed future probe card niches.

Dual-sourcing strategies mitigate geopolitical exposure, pushing suppliers to diversify footprints. FormFactor enlarged its Philippines plant, while Technoprobe opened a Texas service hub for faster turns. Export-license navigation fragments supply, granting domestic Chinese makers an opening in mature nodes. Meanwhile, knowledge-transfer lags outside Asia lengthen qualification for Western fabs, as Intel's 18A line illustrates with its 18-month onboarding cycle versus TSMC's 12-month precedent.
