Printed Circuit Board Inspection Equipment - Market Share Analysis, Industry Trends & Statistics, Growth Forecasts (2026 - 2031)

PUBLISHED:
PAGES: 125 Pages
DELIVERY TIME: 2-3 business days
SELECT AN OPTION
PDF & Excel (Single User License)
USD 4750
PDF & Excel (Team License: Up to 7 Users)
USD 5250
PDF & Excel (Site License)
USD 6500
PDF & Excel (Corporate License)
USD 8750

Add to Cart

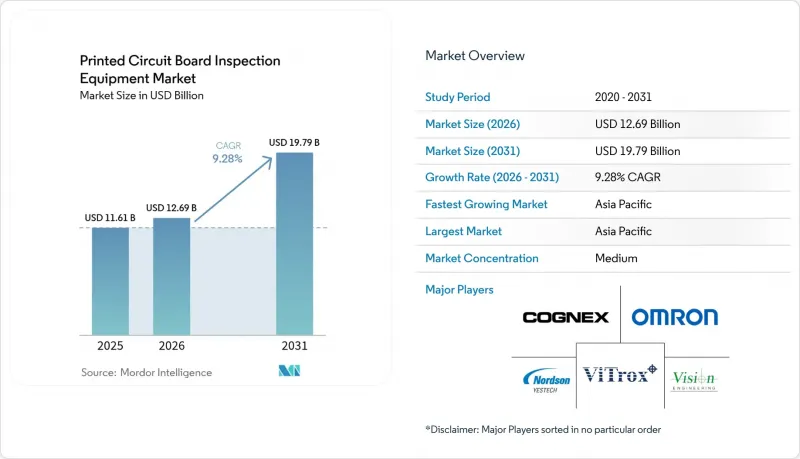

printed circuit board inspection equipment market size in 2026 is estimated at USD 12.69 billion, growing from 2025 value of USD 11.61 billion with 2031 projections showing USD 19.79 billion, growing at 9.28% CAGR over 2026-2031.

Printed Circuit Board Inspection Equipment - Market - IMG1

Rapid miniaturization, zero-defect mandates in automotive and medical electronics, and sub-micron tolerance requirements in advanced packaging are reshaping investment priorities. Inline automatic optical inspection (AOI) platforms dominate current demand, yet 3D AOI and 3D X-ray systems are accelerating because volumetric imaging, coplanarity measurement, and micro-void detection are now essential for high-density interconnect and chiplet substrates. Electronics manufacturers are also shifting toward pay-per-inspection service models that align equipment costs with throughput, while artificial-intelligence-enabled defect classification reduces false calls and lifts effective capacity. Asia-Pacific leads revenue generation, and automotive electronics is the quickest-expanding end-user segment as electric vehicles (EVs) add USD 1,500-2,000 of electronic content per unit.

Global Printed Circuit Board Inspection Equipment Market Trends and Insights

Increasing Miniaturization and Higher Component Densities in Electronics

Component pitch in smartphones has already tightened to 0.3 mm, forcing manufacturers to retire manual visual checks in favour of AOI systems able to resolve features below 20 µm. Microvias between 50 µm and 150 µm, blind or buried via stacks, and copper pillars beneath redistribution layers are invisible to 2D grayscale imaging.

Taiwan's Industrial Technology Research Institute demonstrated a deep-UV 20 nm-resolution prototype in 2024 that identifies micro-cracks in chiplet substrates. As a single defect on a USD 5,000 data-center GPU substrate now drives scrap cost, inline 3D inspection at 15 s per board is economically justified.

Growth in Automotive Electronics and Electric Vehicles

Global EV output climbed to 14 million units in 2024 and is expected to surpass 40 million units by 2030. Each EV integrates power modules, battery-management boards, and driver-assistance controllers that collectively triple PCB content versus internal-combustion vehicles.

Tier-1 suppliers have moved to 100% inline X-ray inspection to meet IATF 16949 reliability standards, while ISO 26262 mandates electronic traceability of inspection results for safety-related assemblies. Increased inspection intensity lifts demand for both 3D AOI and 3D computed tomography (CT) platforms.

High Initial Capital Investments for Advanced AOI And AXI System

Prices for a laser-triangulation 3D AOI platform range from USD 150,000 to 400,000, whereas a sub-micron CT X-ray system commands a price tag exceeding USD 600,000. These high costs pose significant challenges for companies, particularly those operating in cost-sensitive markets, as they require substantial upfront investments. Between 2022 and 2024, rising interest rates pushed the weighted average cost of capital up by 150 to 200 basis points, further straining financial resources by elongating payback periods and causing delays in equipment orders. This financial pressure has led many businesses to reassess their capital allocation strategies. While equipment-as-a-service offerings transform capital expenditure into operational expenditure (OPEX), enabling companies to reduce initial financial burdens, their adoption remains largely confined to mature economies. This limited uptake is attributed to factors such as the availability of advanced infrastructure, favorable regulatory environments, and higher levels of technological readiness in these regions.

Other drivers and restraints analyzed in the detailed report include:

  1. Rising Adoption of Industry 4.0 Smart Manufacturing Lines
  2. Deployment of Advanced AI-Enabled Defect Classification Reducing False Calls
  3. Shortage Of Skilled Technicians for System Programming and Maintenance

For complete list of drivers and restraints, kindly check the Table Of Contents.

Segment Analysis

Automatic optical inspection delivered 56.93% of 2025 revenue, demonstrating the breadth of tasks addressable by 2D and emerging 3D optics. X-ray inspection, however, is forecast to expand at an 10.74% CAGR through 2031 as ball-grid arrays, QFNs, and SiP modules proliferate. Computed-tomography units visualize voiding in micro-bumps and through-silicon vias at 1 µm voxel resolution, replacing destructive cross-sectioning. Optical-only stations remain cost-effective for components above 0.5 mm pitch, but their addressable share will narrow as 0.3 mm pitch becomes mainstream. Solder-paste inspection is fully integrated into surface-mount lines to catch stencil defects early, reducing downstream rework by more than 80%.

X-ray adoption draws support from semiconductor packaging trends that push chiplet architectures onto PCB assembly floors. Vendors such as Comet and Waygate now offer CT scanners tailored for high-throughput board lines, merging semiconductor-class resolution with conveyorized handling. Optical stations still dominate low-risk consumer products, yet even in smartphones volumetric checks are rising for under-display cameras and folded flex tails. Overall, x-ray growth lifts the printed circuit board inspection equipment market by unlocking inspection windows unreachable by visible light.

Inline systems held 60.72% of 2025 demand and are projected to progress at a 11.68% CAGR, the fastest among all form factors. Their conveyor integration enables 100% board coverage at 15-30 s per piece without interrupting flow. Closed-loop feedback with printers and placement machines converts defect detection into immediate process correction, a capability that offline stations cannot match. Pay-per-inspection agreements further tilt economics toward inline purchases by treating inspection as a variable cost tied to low volume.

Offline and benchtop stations continue to serve engineering labs, first-article inspections, and low-volume medical, and avionics builds where flexibility outweighs speed. Yet their installed base is slowly declining as contract manufacturers consolidate multiple tasks into single inline nodes. The printed circuit board inspection equipment market therefore leans on inline platforms not only for scale but also for data granularity needed in smart-factory environments.

The Printed Circuit Board Inspection Equipment Market Report is Segmented by Inspection Method (Automatic Optical Inspection, and More), System Type (Inline Systems, and More), Technology (2D AOI, 3D AOI, and More), End User (Consumer Electronics, Automotive Electronics, and More), PCB Type (Rigid PCBs, Flexible and Rigid-Flex PCBs, and More), and Geography. The Market Forecasts are Provided in Terms of Value (USD).

Geography Analysis

Asia-Pacific delivered 37.88% of global revenue in 2025 and is expected to expand at an 11.12% CAGR to 2031. China alone accounts for 28% of worldwide electronics manufacturing and hosts contract assemblers such as Foxconn and Luxshare Precision that mandate inline AOI across smartphone, laptop, and wearable lines. South Korea and Taiwan specialize in HDI substrates for memory modules and data-center accelerators, while Japan maintains a premium niche in automotive and industrial electronics that justifies early adoption of CT inspection. Government programs like China's Made in China 2025 and South Korea's K-Semiconductor Strategy subsidize smart-factory tools, further lifting regional demand.

North America and Europe jointly held roughly 44.62% of 2025 turnover. The United States CHIPS and Science Act allocate USD 52 billion for semiconductor and advanced-packaging plants, many of which will source inspection equipment for substrate and interposer lines. Germany, France, and Italy are upgrading automotive electronics capacity, installing CT X-ray to safeguard battery-pack and power-module quality. Regulatory regimes such as FDA 21 CFR 820 for medical devices and AS9100 for aerospace secure a baseline of offline CT and acoustic microscopy sales.

The Middle East, Africa, and South America contribute smaller shares but demonstrate patchy growth. Israel's defense and medical-device sector insist on IPC Class 3 traceability, prompting CT purchases. Saudi Arabia and the United Arab Emirates have launched domestic electronics programs as part of diversification agendas, adding mid-tier AOI demand. Brazil and Argentina assemble consumer electronics and industrial controls for regional consumption, favouring cost-competitive 2D AOI units yet gradually incorporating Industry 4.0 data collection. These emerging hubs collectively enlarge the printed circuit board inspection equipment market footprint beyond traditional strongholds.

  1. Nordson Corporation
  2. Koh Young Technology Inc.
  3. Omron Corporation
  4. ViTrox Corporation Berhad
  5. Mirtec Co., Ltd.
  6. Viscom AG
  7. Saki Corporation
  8. CyberOptics Corporation
  9. Test Research Inc.
  10. KLA Corporation
  11. Camtek Ltd.
  12. Yamaha Motor Co., Ltd. (Yamaha SMT)
  13. Unicomp Technology Co., Ltd.
  14. Nikon Corporation
  15. Comet Yxlon GmbH
  16. Waygate Technologies GmbH
  17. Shenzhen JT Automation Equipment Co., Ltd.
  18. GOPEL electronic GmbH
  19. Machine Vision Products Inc.
  20. Pemtron Corporation

Additional Benefits:

  • The market estimate (ME) sheet in Excel format
  • 3 months of analyst support
Product Code: 67095

TABLE OF CONTENTS

1 INTRODUCTION

  • 1.1 Study Assumptions and Market Definition
  • 1.2 Scope of the Study

2 RESEARCH METHODOLOGY

3 EXECUTIVE SUMMARY

4 MARKET LANDSCAPE

  • 4.1 Market Overview
  • 4.2 Market Drivers
    • 4.2.1 Increasing Miniaturization and Higher Component Densities in Electronics
    • 4.2.2 Rising Adoption of Industry 4.0 Smart Manufacturing Lines
    • 4.2.3 Growth in Automotive Electronics and Electric Vehicles
    • 4.2.4 Deployment of Advanced AI-Enabled Defect Classification Reducing False Calls
    • 4.2.5 Pay-Per-Inspection and Equipment-as-a-Service Business Models Lowering CapEx Barriers
    • 4.2.6 Demand for Sub-Micron 3D Inspection in Advanced Packaging and Chiplet PCBs
  • 4.3 Market Restraints
    • 4.3.1 High Initial Capital Investments for Advanced AOI/AXI Systems
    • 4.3.2 Shortage of Skilled Technicians for System Programming and Maintenance
    • 4.3.3 Rapid Technology Obsolescence Leading to Compressed ROI Cycles
    • 4.3.4 Radiation Safety Compliance Costs for High-Power X-Ray Inspection Lines
  • 4.4 Value-Chain Analysis
  • 4.5 Regulatory Landscape
  • 4.6 Technological Outlook
  • 4.7 Impact of Macroeconomic Factors on the Market
  • 4.8 Porter's Five Forces Analysis
    • 4.8.1 Threat of New Entrants
    • 4.8.2 Bargaining Power of Buyers
    • 4.8.3 Bargaining Power of Suppliers
    • 4.8.4 Threat of Substitute Products
    • 4.8.5 Intensity of Competitive Rivalry

5 MARKET SIZE AND GROWTH FORECASTS (VALUE)

  • 5.1 By Inspection Method
    • 5.1.1 Automatic Optical Inspection (AOI)
    • 5.1.2 X-Ray Inspection (AXI)
    • 5.1.3 Solder Paste Inspection (SPI)
    • 5.1.4 Other Specialized Methods (Acoustic, Laser, Thermography)
  • 5.2 By System Type
    • 5.2.1 Inline Systems
    • 5.2.2 Offline / Benchtop Systems
  • 5.3 By Technology
    • 5.3.1 2D AOI
    • 5.3.2 3D AOI
    • 5.3.3 2D X-Ray
    • 5.3.4 3D / CT X-Ray
  • 5.4 By End User
    • 5.4.1 Consumer Electronics Manufacturers
    • 5.4.2 Automotive Electronics Manufacturers
    • 5.4.3 Industrial and Energy Electronics
    • 5.4.4 Aerospace and Defense
    • 5.4.5 Medical Device Manufacturers
  • 5.5 By PCB Type
    • 5.5.1 Rigid PCBs
    • 5.5.2 Flexible and Rigid-Flex PCBs
    • 5.5.3 High-Density Interconnect (HDI) PCBs
    • 5.5.4 Advanced Packaging Substrates
  • 5.6 Geography
    • 5.6.1 North America
      • 5.6.1.1 United States
      • 5.6.1.2 Canada
      • 5.6.1.3 Mexico
    • 5.6.2 Europe
      • 5.6.2.1 United Kingdom
      • 5.6.2.2 Germany
      • 5.6.2.3 France
      • 5.6.2.4 Italy
      • 5.6.2.5 Rest of Europe
    • 5.6.3 Asia-Pacific
      • 5.6.3.1 China
      • 5.6.3.2 Japan
      • 5.6.3.3 India
      • 5.6.3.4 South Korea
      • 5.6.3.5 Rest of Asia
    • 5.6.4 Middle East
      • 5.6.4.1 Israel
      • 5.6.4.2 Saudi Arabia
      • 5.6.4.3 United Arab Emirates
      • 5.6.4.4 Turkey
      • 5.6.4.5 Rest of Middle East
    • 5.6.5 Africa
      • 5.6.5.1 South Africa
      • 5.6.5.2 Egypt
      • 5.6.5.3 Rest of Africa
    • 5.6.6 South America
      • 5.6.6.1 Brazil
      • 5.6.6.2 Argentina
      • 5.6.6.3 Rest of South America

6 COMPETITIVE LANDSCAPE

  • 6.1 Market Concentration
  • 6.2 Strategic Moves
  • 6.3 Market Share Analysis
  • 6.4 Company Profiles (includes Global Level Overview, Market Level Overview, Core Segments, Financials as available, Strategic Information, Market Rank/Share for key companies, Products and Services, and Recent Developments)
    • 6.4.1 Nordson Corporation
    • 6.4.2 Koh Young Technology Inc.
    • 6.4.3 Omron Corporation
    • 6.4.4 ViTrox Corporation Berhad
    • 6.4.5 Mirtec Co., Ltd.
    • 6.4.6 Viscom AG
    • 6.4.7 Saki Corporation
    • 6.4.8 CyberOptics Corporation
    • 6.4.9 Test Research Inc.
    • 6.4.10 KLA Corporation
    • 6.4.11 Camtek Ltd.
    • 6.4.12 Yamaha Motor Co., Ltd. (Yamaha SMT)
    • 6.4.13 Unicomp Technology Co., Ltd.
    • 6.4.14 Nikon Corporation
    • 6.4.15 Comet Yxlon GmbH
    • 6.4.16 Waygate Technologies GmbH
    • 6.4.17 Shenzhen JT Automation Equipment Co., Ltd.
    • 6.4.18 GOPEL electronic GmbH
    • 6.4.19 Machine Vision Products Inc.
    • 6.4.20 Pemtron Corporation

7 MARKET OPPORTUNITIES AND FUTURE OUTLOOK

  • 7.1 White-Space and Unmet-Need Assessment
