GPU Chiplet Packaging - Market Share Analysis, Industry Trends & Statistics, Growth Forecasts (2026 - 2031)

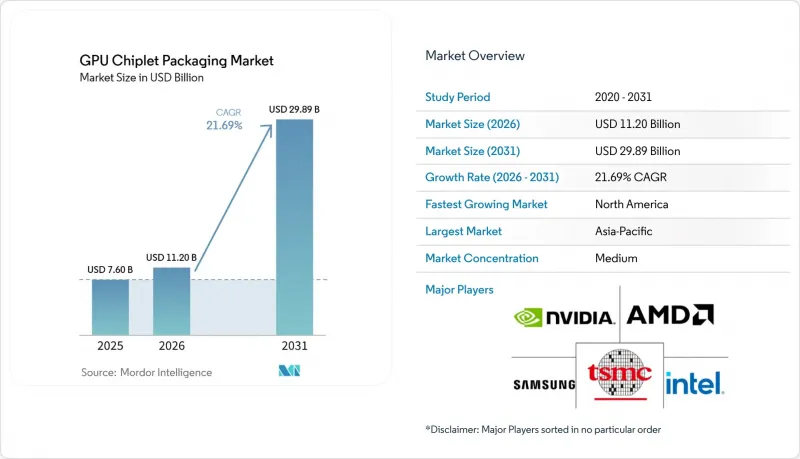

According to Mordor Intelligence, the GPU chiplet packaging market size is expected to increase from USD 7.60 billion in 2025 to USD 11.20 billion in 2026 and reach USD 29.89 billion by 2031, growing at a CAGR of 21.69% over 2026-2031.

This report is Segmented by GPU Platform (Data Center and AI GPUs, and More), Packaging Technology (2. 5D Interposer and Bridge-Based Packaging, and More), Chiplet Function (GPU Compute Chiplets, and More), Application (AI Training and Inference, Cloud Computing, and More), End User (Hyperscalers and Cloud Providers, and More), and Geography. The Market Forecasts are Provided in Terms of Value (USD).

Global GPU Chiplet Packaging Market Trends and Insights

Rising AI GPU Demand for HBM-Attached Packages

Hyperscaler AI infrastructure spending remains the clearest near-term demand driver for the GPU chiplet packaging market. NVIDIA's data center segment generated USD 75.2 billion in Q1 FY2027, the quarter ending April 2026, and this was 92% higher than the prior year, while Q2 FY2027 guidance was set at USD 91.0 billion. The draft links that product ramp directly to package complexity, because each Blackwell B200 package combines 2 compute dies with 8 HBM3E stacks on a CoWoS-L substrate. That configuration means each new AI GPU order translates into direct demand for advanced packaging lines, advanced substrates, and high-density memory integration. The result is that the GPU chiplet packaging market is no longer being shaped mainly by broad semiconductor cycles, but by the timing of very large accelerator deployments. This also explains why packaging capacity has become a strategic bottleneck rather than a routine back-end manufacturing step.

Heterogeneous Integration for Datacenter Performance Scaling

Heterogeneous integration has become a core performance lever because simple process shrinks no longer deliver enough system-level gain for leading accelerators. Intel stated that Foveros Direct 3D achieves sub-10 µm interconnect pitch through direct copper-to-copper bonding and can provide up to 10x finer interconnect density than conventional microbump approaches. That level of density supports the vertical die-stacking layouts needed when compute, memory, and I/O functions must operate within a very small physical distance. The same architectural logic is moving beyond flagship GPUs and into custom AI inference silicon programs designed by hyperscaler teams. This broadens the addressable volume base for the GPU chiplet packaging market beyond the standard GPU vendor roadmap. It also raises the importance of packaging teams that can work across design, thermal, and assembly constraints at the same time.

High Packaging Cost and Limited High-Volume Capacity

High package cost still limits the broad adoption of leading-edge configurations to the highest-value compute programs. The draft states that CoWoS-L packaging for current-generation AI GPUs requires added local silicon bridge elements, higher microbump counts, and lower early-stage assembly yields than simpler CoWoS-S designs. That cost difference matters because the same customers driving market growth are also reserving much of the available qualified capacity. The supply issue is wider than assembly alone, since substrates, specialty materials, and bonding tools all have to scale together for commercial output to increase smoothly. Each new package also needs coordinated qualification across GPU, HBM, and substrate suppliers before revenue can ramp. As a result, the GPU chiplet packaging market faces a structural mismatch between strong demand visibility and slower supply readiness.

Other drivers and restraints analyzed in the detailed report include:

1. Yield Advantage of Smaller GPU Chiplets Versus Monolithic Dies
2. Advanced Packaging Capacity Investments by Foundries and OSATs
3. Thermal and Signal Integrity Complexity in Dense Interconnects

For complete list of drivers and restraints, kindly check the Table Of Contents.

Segment Analysis

Data Center and AI GPUs held 86.11% of GPU chiplet packaging market share in 2025 and are projected to expand at a 23.21% CAGR through 2031. This concentration reflects the fact that hyperscalers and enterprise AI programs are ordering the most packaging-intensive devices, not the highest historical unit-volume devices. These platforms require CoWoS-L, advanced organic substrate flip-chip, or 3D integration methods that carry far more packaging value per chip than standard client graphics products. NVIDIA's data center segment revenue of USD 75.2 billion in Q1 FY2027 provides a current-year anchor for the demand intensity behind this category. The GPU chiplet packaging market is therefore being led by the platform class that combines the greatest memory bandwidth needs with the greatest package complexity.

HPC GPUs form the second-largest platform in the draft and serve scientific computing, climate modeling, and defense workloads that still require highly capable 2.5D packaging. Their volumes are lower than the AI accelerator class, but their performance and reliability needs remain demanding. Professional and workstation GPUs sit in a middle tier, where advanced organic substrate solutions are more common than full silicon interposer integration. Client and gaming GPUs still represent a large unit base, but they produce less advanced packaging revenue per chip because their package structures are less dense and less memory intensive. This gap between unit volume and packaging value is widening as AI accelerators move to larger package footprints and higher HBM stack counts. That widening gap reinforces the premium position of data center GPUs within the GPU chiplet packaging market.

2.5D Interposer and Bridge-Based Packaging accounted for 68.33% of GPU chiplet packaging market size in 2025, while 3D Stacked and Hybrid-Bonded Packaging is forecast to grow at a 23.62% CAGR through 2031. The present leadership of 2.5D formats reflects proven manufacturing readiness across current AI accelerators in commercial shipment. TSMC's CoWoS family and Intel's EMIB platform established a production base that current customers already trust for volume delivery and package reliability. Intel also positioned Foveros Direct 3D as a next-stage path for tighter direct bonding and denser vertical integration. This means the GPU chiplet packaging market is still anchored by 2.5D revenue even as 3D technologies gain strategic importance.

The draft shows that 3D stacked and hybrid-bonded formats are gaining momentum because future memory and logic designs need much finer interconnect geometry than conventional microbump flows can support. Fan-Out and RDL-based packaging provides an alternative path for customers that need advanced integration without the full cost profile of silicon interposer approaches. Organic substrate-based multi-die packaging remains relevant for client GPU and entry workstation programs where bandwidth density and thermal load are more moderate. Standards compliance is also becoming more important because high-bandwidth memory interfaces and die-to-die connections have to qualify within tighter electrical and thermal limits. This puts process maturity, not just novelty, at the center of commercial adoption. As a result, the GPU chiplet packaging market is likely to move in stages, with 2.5D staying dominant in volume while 3D expands first in the highest-value programs.
