Photosensitive Semiconductor Device - Market Share Analysis, Industry Trends & Statistics, Growth Forecasts (2026 - 2031)

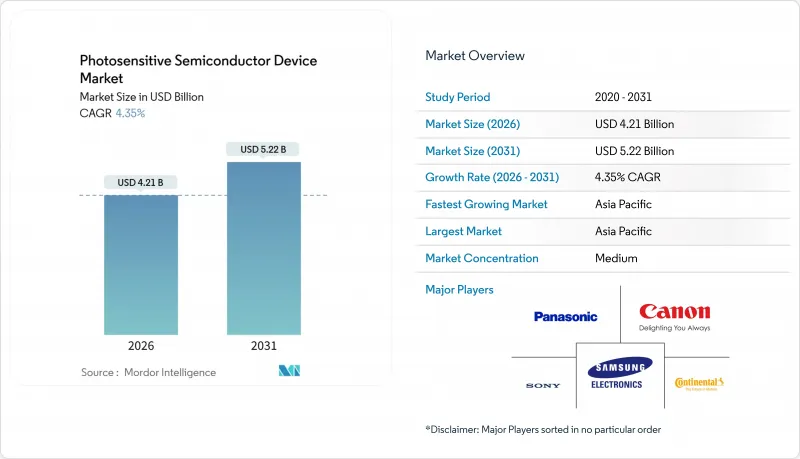

According to Mordor Intelligence, the photosensitive semiconductor device market size reached USD 4.21 billion in 2026 and is projected to grow to USD 5.22 billion by 2031, reflecting a 4.35% CAGR over the forecast period.

This report is Segmented by Device (Photocell, Photodiode, Phototransistor, and More), Material (Silicon, Germanium, and More), Operating Mode (Photovoltaic, Photoconductive, and Avalanche), Application (Optical Communication, Automotive, and More), End User (Automotive OEMs, Consumer Electronics, and More), and Geography. The Market Forecasts are Provided in Terms of Value (USD).

Global Photosensitive Semiconductor Device Market Trends and Insights

Rising Automotive ADAS and LiDAR Adoption

LiDAR unit shipments reached 830,000 during the first three quarters of 2025 as Chinese sport-utility vehicles priced below USD 40,000 adopted solid-state scanners. European regulations requiring automatic emergency braking by model-year 2027 are accelerating avalanche-photodiode demand in forward-facing camera clusters. North American tier-one suppliers increased purchase orders by 40% in late 2025, driven by rollouts from General Motors and Ford. Time-of-flight arrays need sub-10-nanosecond response, creating a moat for incumbents that already hold AEC-Q101 qualifications. Unit prices have fallen roughly 60% since 2024, expanding addressable volume but squeezing margins for photodetector vendors.

Exploding Multi-Camera Smartphone Shipments

Handsets with three or more rear cameras surpassed 720 million units in 2025, up from 580 million in 2024, as mid-tier Android models adopted ultra-wide and telephoto modules. Sony's stacked sensors integrate phase-detection pixels and high-dynamic-range processing, while Samsung's ISOCELL GNJ shrinks module height by 8%. Chinese brands now specify back-side-illuminated arrays with on-chip analog-to-digital conversion that cuts power draw by 20%, meeting battery-life constraints imposed by 5G modems. Alignment of ISO 12233 and IEEE P2020 standards is allowing dual-use designs for smartphones and in-cabin monitoring, speeding product reuse.

Increasing Price Pressure

Average selling prices for mainstream CMOS sensors fell 12% between Q4 2024 and Q3 2025 as Chinese startups undercut incumbents. Automotive integrators now expect annual 5-7% unit cost reductions, eroding margins for discrete photodiodes. Computational photography extends flagship-level image quality to lower-resolution sensors, dampening hardware upgrades. System-on-chip integration shifts value toward foundry partners, leaving traditional sensor vendors with a shrinking share of the bill-of-material.

Other drivers and restraints analyzed in the detailed report include:

1. On-Sensor AI Processing Reducing Bandwidth and System Cost
2. Demand for Improved Imaging and Optical Sensing
3. Limited Supply of Ultra-High-Purity Silicon Wafers

For complete list of drivers and restraints, kindly check the Table Of Contents.

Segment Analysis

CMOS image sensors contributed 41.28% of 2025 revenue and remain the volume backbone of the photosensitive semiconductor device market. Their dominance rests on stacked architectures that decouple pixel and logic wafers, allowing larger full-well capacity, faster readout, and on-sensor artificial-intelligence blocks that remove external signal processors. Sony, Samsung, and SK hynix collectively shipped more than 100 million stacked units in 2025, enabling 8 K video at 60 frames per second and sustained 480-frame bursts for computational photography. Back-side-illuminated layouts now cover roughly 70% of smartphone output, a jump from 55% in 2023, as mid-tier Android handsets demanded sub-0.7 micrometer pixels to preserve low-light sensitivity. The photosensitive semiconductor device market size tied to stacked sensors is forecast to rise from USD 1.74 billion in 2026 to USD 2.15 billion by 2031, supported by continued camera proliferation in wearables and drones.

Discrete photodiodes PIN, PN, avalanche, and Schottky variants occupy a resilient niche in optical communication, medical imaging, and industrial automation, where spectral customization and AEC-Q101 validation outweigh the integration advantages of image sensors. Single-photon avalanche diode and quantum image sensor arrays exhibit the fastest trajectory, advancing at a 4.89% CAGR as automakers and lidar makers require picosecond timing precision. Photo-ICs that merge photodiodes with transimpedance amplifiers and comparators are expanding in health-monitoring patches and augmented-reality headsets because they cut board area by half and power draw by one-third. In contrast, phototransistors, photoresistors, and legacy photocells account for under 2% of photosensitive semiconductor device market share and are slowly retreating to low-speed optocouplers and ambient-light modules. Reliability in automotive reflow remains an open challenge; forward-voltage drift forced suppliers to specify tighter junction-capacitance windows and dark-current ceilings, raising test cost but preserving field performance.

Silicon held 62.16% of 2025 value because decades of complementary metal-oxide-semiconductor process tuning keep defect densities low and cost per pixel unmatched. Its grip is strongest in smartphones, automotive surround-view cameras, and machine-vision systems, where wafer tooling and circuit libraries are highly amortized. Even so, marginal cost gains are tapering as pixel pitch nears 0.5 micrometers and quantum-efficiency ceilings approach 95% in the visible band. Suppliers are therefore stretching silicon through advanced doping profiles, backside deep-trench isolation, and wafer bonding to retain competitiveness. The photosensitive semiconductor device market size linked to silicon is expected to inch upward at a sub-4% CAGR, yet its overall share slips as alternatives mature.

Perovskite and organic semiconductors represent the most credible long-term threat. Research groups in Japan and South Korea reported external quantum efficiency above 80% in the 800-1,200 nanometer band during 2025, performance that undercuts indium gallium arsenide at one-tenth of material cost. Panasonic's pilot line for dashboard-integrated organic photodiodes illustrates early commercialization, while Hamamatsu and ON Semiconductor have disclosed roadmap evaluations for perovskite avalanche structures that promise internal gain without high reverse bias. Qualification gaps persist because neither IEC 60747 nor AEC-Q101 defines reliability rules for solution-processed layers; tier-one automotive suppliers are crafting bespoke 1,000-hour humidity and UV tests, adding up to 12 months to launch cycles. Germanium and indium gallium arsenide remain entrenched in telecom and spectroscopy, but their premium pricing will face incremental erosion once perovskite detectors prove 10,000-hour stability under 85 °C and 85% relative humidity.
